Splitter.SplitTextByLengths Function in Power Query

The Splitter.SplitTextByLengths function in Power Query (M language) is used to split a text value into multiple parts based on a list of lengths. It is very useful when you have fixed-width text data and want to extract segments of specified lengths.

Syntax

Splitter.SplitTextByLengths(
    lengths as list,
    optional startAtEnd as nullable logical
) as function

The function has the following parameters:

lengths: A list of numbers specifying the length of each segment to extract.
Example: {3, 2, 4} → first 3 characters, next 2 characters, next 4 characters.
startAtEnd: It is an optional parameter. Logical value (true or false).
- false: Splitting starts from the beginning of the text. It is the default value.
- true: Splitting starts from the end of the text.

Return Value: Returns a function that can be applied to a text value to produce a list of text segments according to the specified lengths.

Example: Splitting an 8-digit string column into Branch Code, Subject Code, and Version using Splitter.SplitTextByLengths.

Power Query M

// Start the let expression block to define the query steps
let
  // Step 1: Create a table named 'Source' from a list of records
  // Each record contains a single field called "Data" with an 8-digit string
  Source = Table.FromRecords(
    {
      [Data = "01569500"],
      [Data = "02547801"],
      [Data = "03380707"],
      [Data = "14745847"],
      [Data = "75727804"],
      [Data = "56537809"],
      [Data = "44568305"],
      [Data = "08778001"]
    }
  ),

  // Step 2: Split the "Data" column into three new columns based on fixed lengths
  // The lengths {2,4,2} mean:
  //   - First 2 digits will become "Branch Code"
  //   - Next 4 digits will become "Subject Code"
  //   - Last 2 digits will become "Version"
  return = Table.SplitColumn(
    Source,
    "Data",
    Splitter.SplitTextByLengths({2, 4, 2}),
    {"Branch Code", "Subject Code", "Version"}
  )

// Final output of the query
in
  return

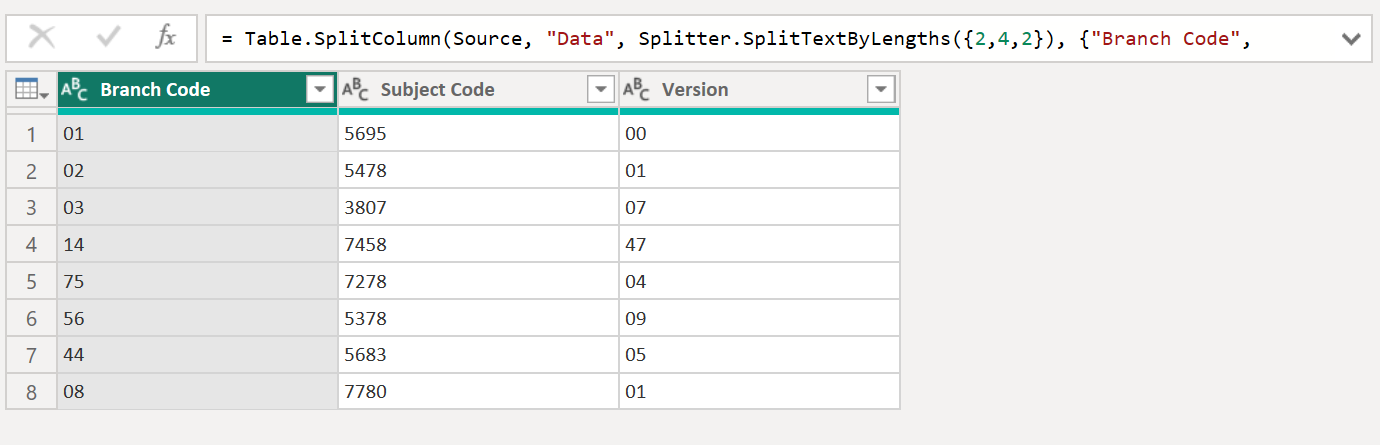

The output of the above code is shown in the image below:

Splitter.SplitTextByLengths Function in Power Query

Note: The Splitter.SplitTextByRanges, Splitter.SplitTextByLengths, and Splitter.SplitTextByPositions functions all rely on accurate inputs (ranges, lengths, or positions) to produce the correct output. If these are incorrect, the resulting substrings will be wrong.
