CONCATENATEX DAX Function in Power BI

The CONCATENATEX DAX function in Power BI is used to concatenate text values from a table or column, optionally using a delimiter and an order.

DAX Syntax CONCATENATEX(table, expression[, delimiter [, orderBy_expression [, order]]...])

The function has the following parameters:

table: The table to operate on (can be a table name or a table expression).
expression: The column or expression whose values will be concatenated.
delimiter:Optional. A text string to separate each value. Default is no delimiter.
orderBy_expression:Optional. Column or expression to order the concatenated values by.
order:Optional. Ascending (ASC) or descending (DESC). Default is ascending.

Returns A single text string containing the concatenated values.

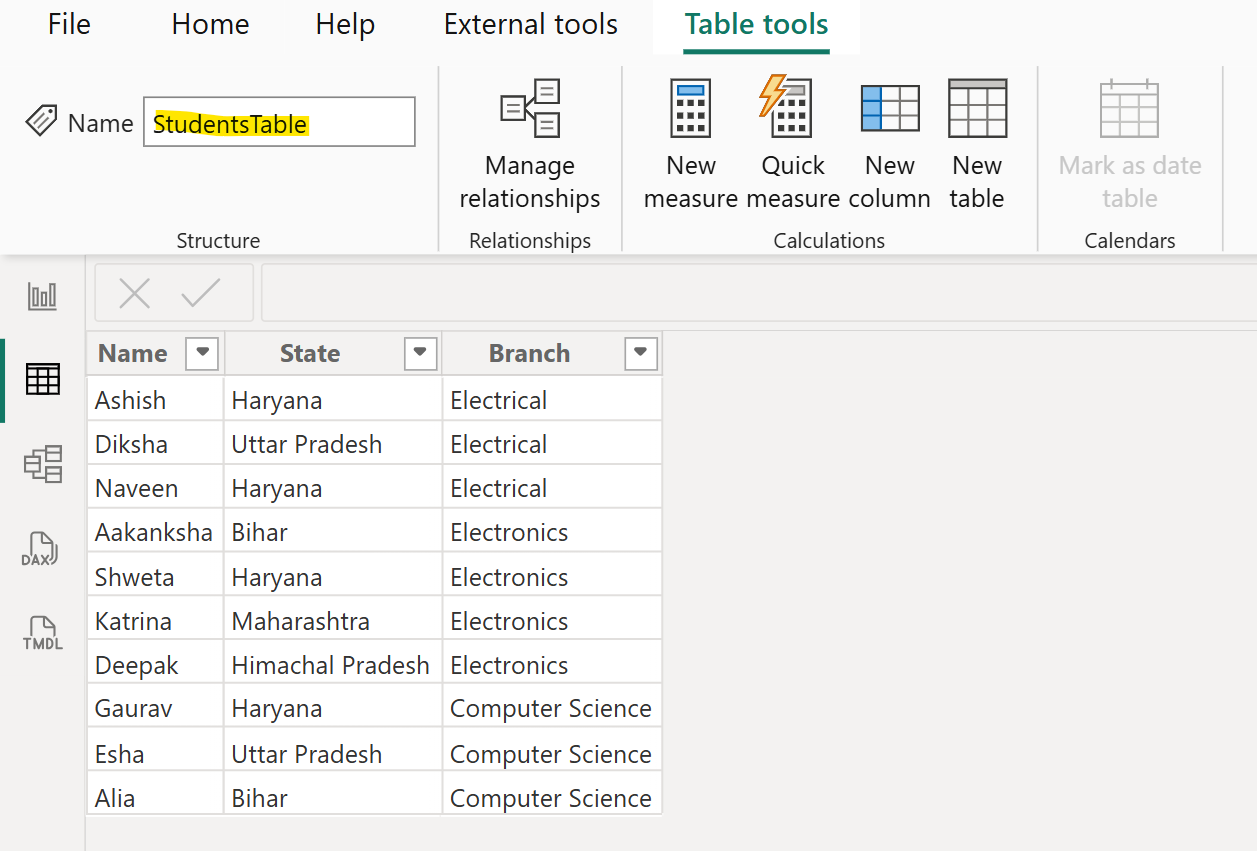

Example: Let’s have a table named StudentsTable in the Power BI.

Let’s concatenate the values from the Name column with comma delimiter (,) and sort the result using the [Name] column in ascending order.

DAX

CONCATENATEX Measure =
CONCATENATEX (
    StudentsTable,
    StudentsTable[Name],
    ", ",
    StudentsTable[Name], ASC
)

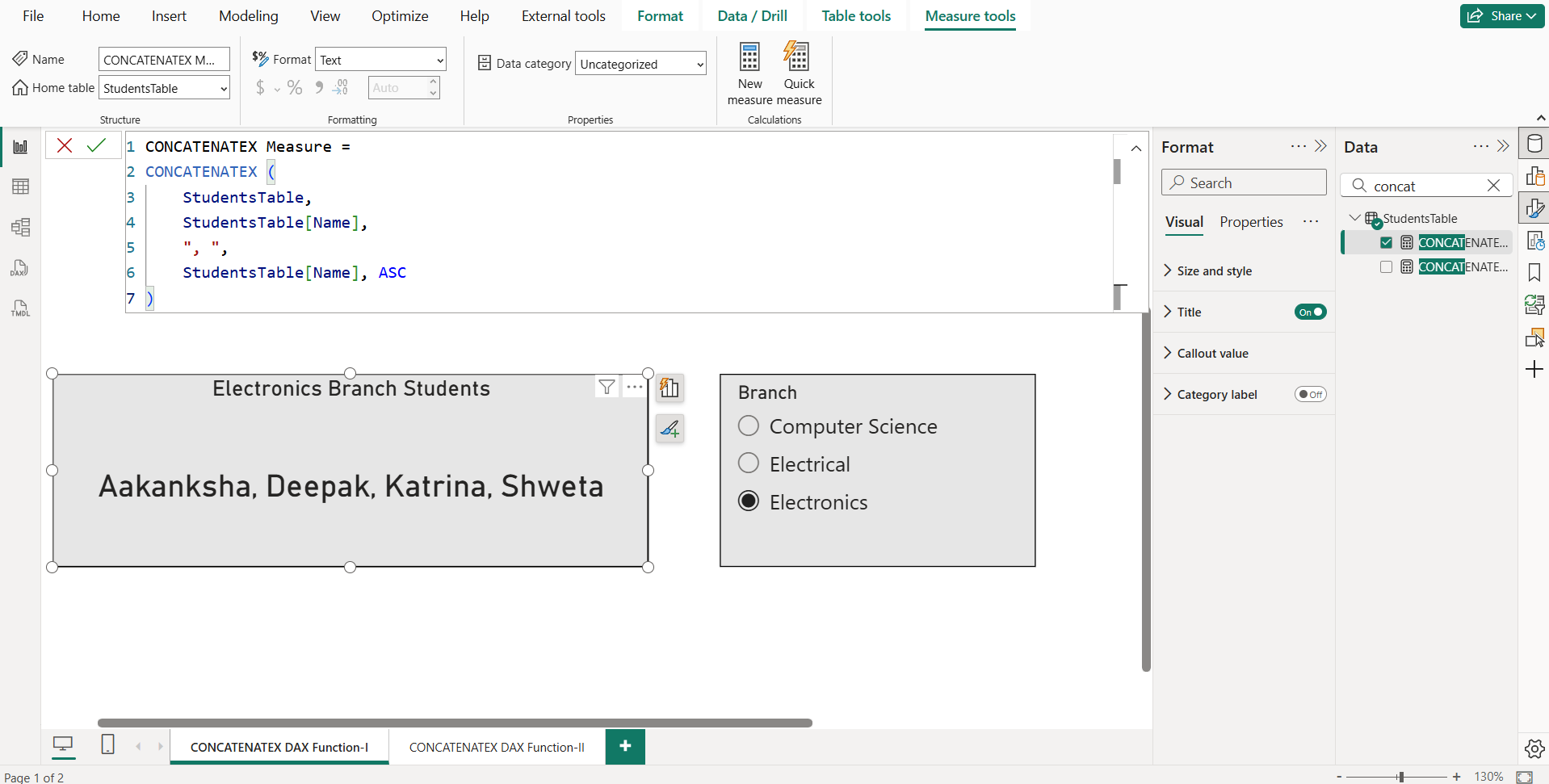

The output of the above code is shown below:

The result is sorted alphabetically by [Name] column.

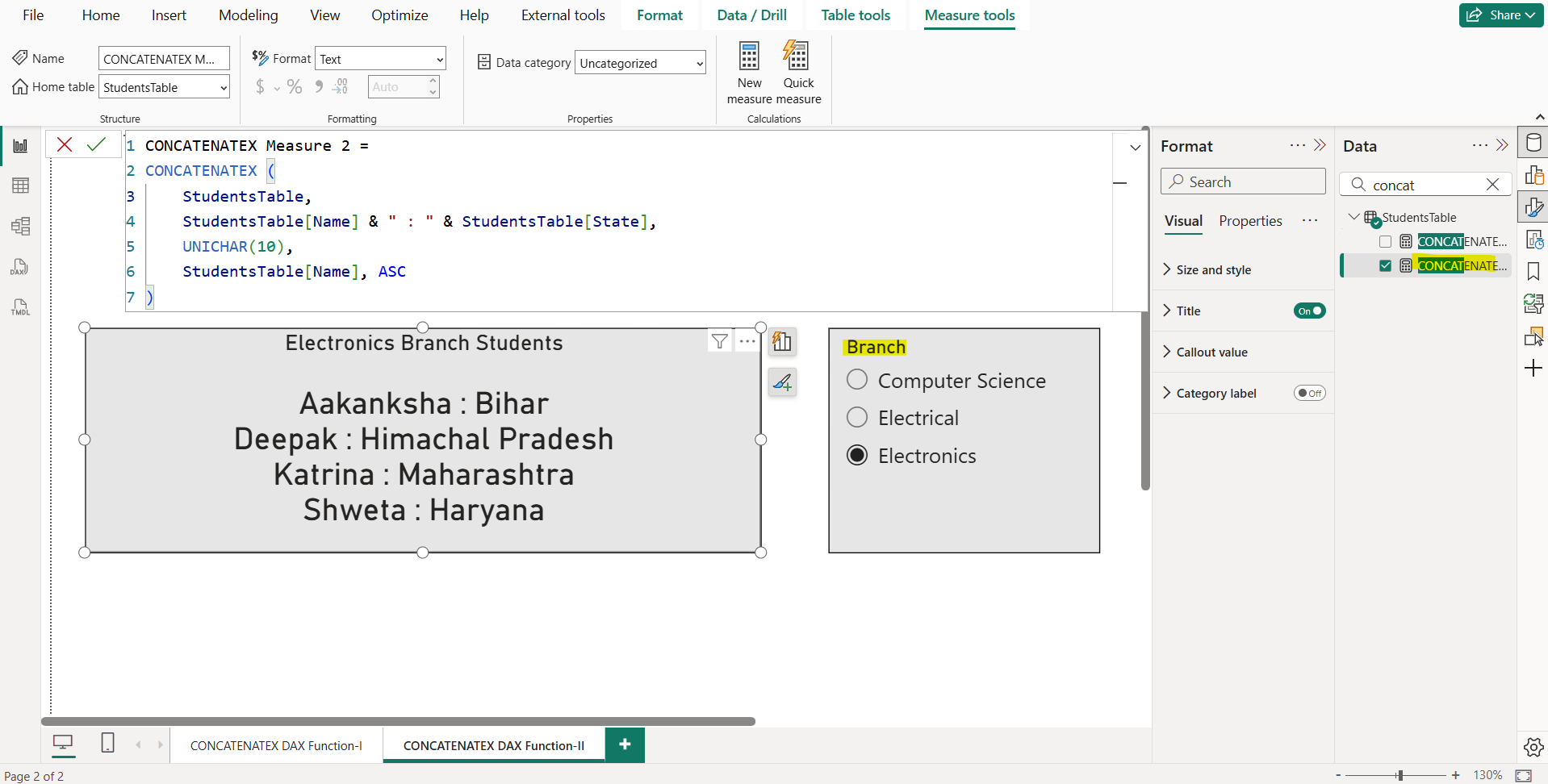

DAX

CONCATENATEX Measure 2 =
CONCATENATEX (
    StudentsTable,
    StudentsTable[Name] & " : " & StudentsTable[State],
    UNICHAR(10),
    StudentsTable[Name], ASC
)

Here, the UNICHAR(10) inserts a newline.

Note: CONCATENATEX is context-aware: it respects filters and row contexts in visuals or measures.
